Only 200 of these instruments will be made in 2023.
PRS Guitars Announces Private Stock John McLaughlin Limited Edition Signature Model July 18, 2023 – PRS Guitars has announced a Limited-Edition Private Stock John McLaughlin Signature model. BCR Music & Sound has TWO (2) on the way, and expect them to arrive by November 30, 2023.

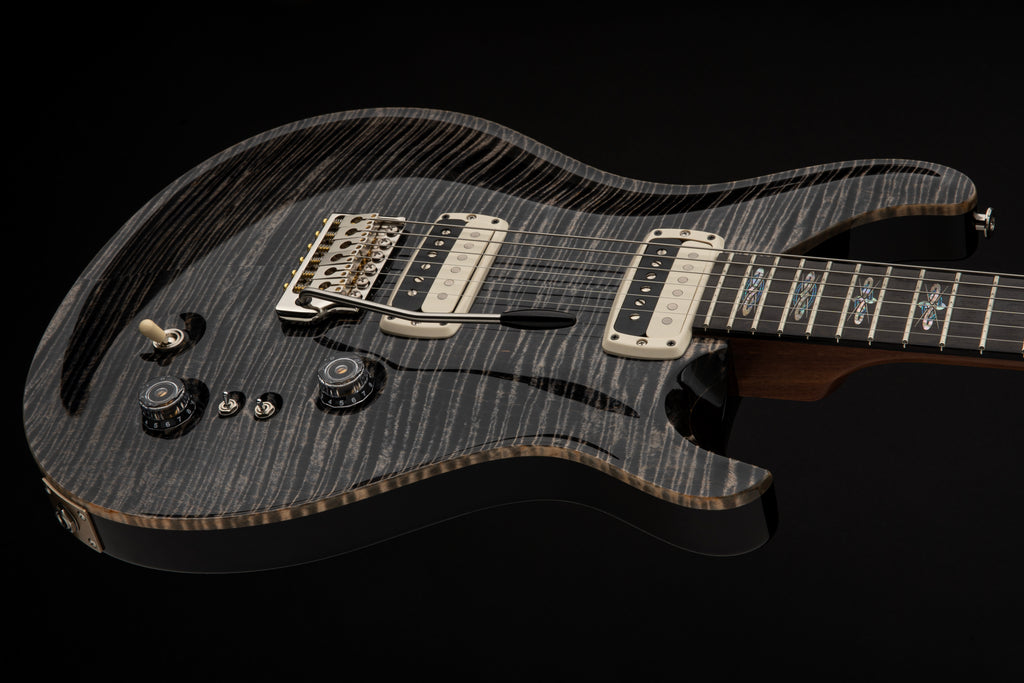

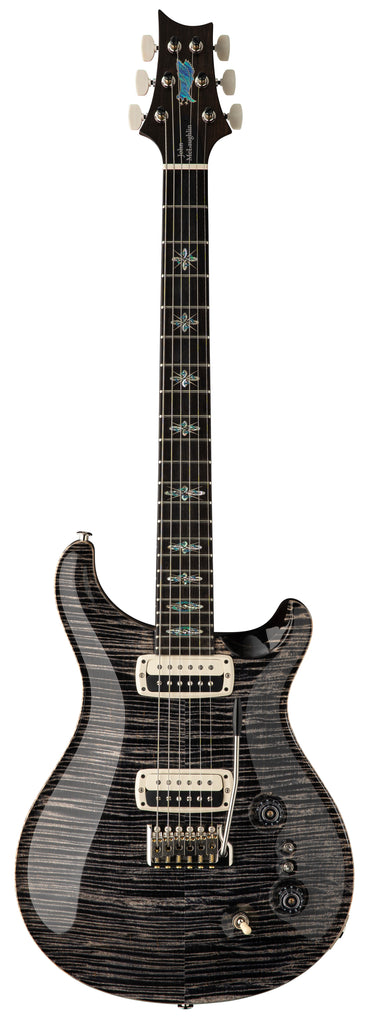

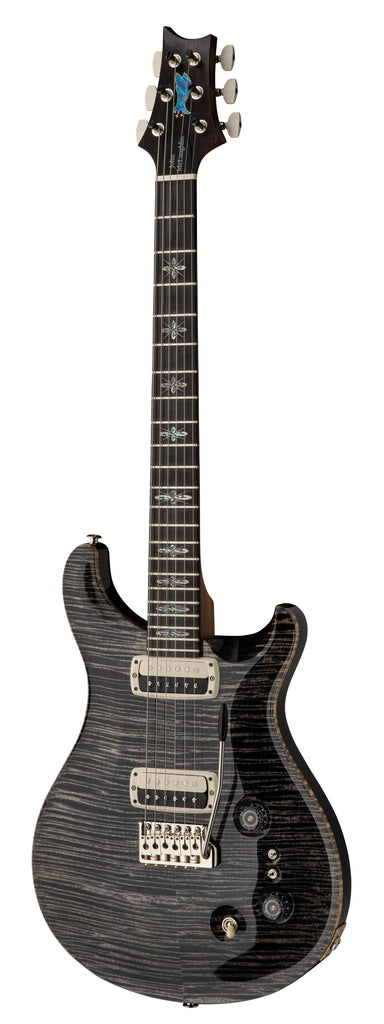

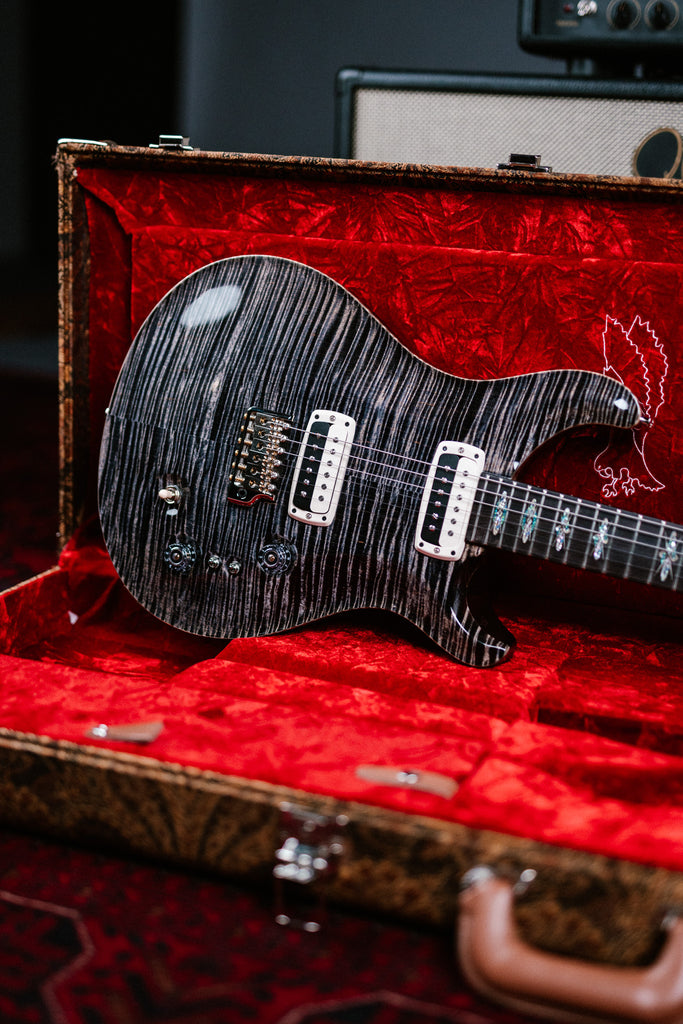

The PRS Private Stock John McLaughlin is a classic instrument that has been meticulously spec’d by Paul Reed Smith to honor John McLaughlin.
All of the woods were specially chosen by Smith for their tone, figure, and weight. The specs are fairly straightforward: maple top, mahogany
back, hormigo neck (a tone wood used on marimbas for sound-producing tines) with an African blackwood fretboard, 22 frets, 25” scale length,
Pattern neck, PRS’s patented Gen III tremolo, and PRS Phase III tuners.
Some of the more particular details on this model are in the finish, pickups, and electronics. The guitar is finished in high-gloss nitro with an

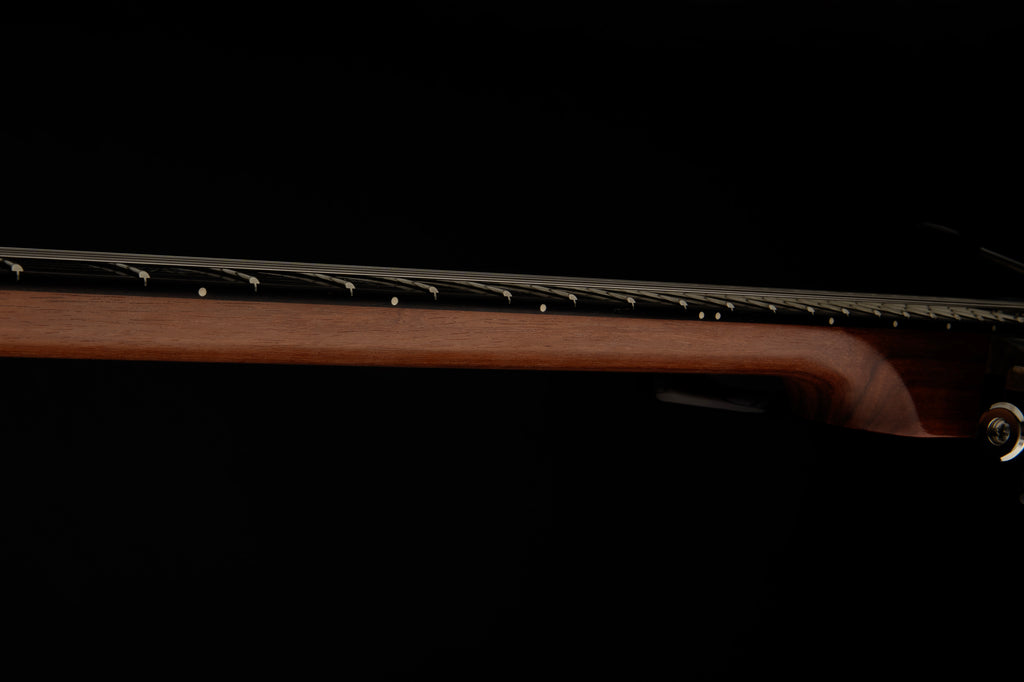

unfinished neck with clear grain filler for a smooth, natural playing feel. The TCI pickups feature American Alnico and are paired with volume and tone controls with a 3-way toggle pickup switch and two mini-toggle EQ switches. The mini-toggles act as tuned high-pass filters when engaged (in the up position), removing shelved low-end and allowing the high frequencies through for more clarity and musical highs.
“Playing music is a way of being. Playing an instrument requires you to move out of the normal level of consciousness. If you’re thinking, you’re
not playing. If you’re playing, you’re not thinking. If you have problems with your instrument, you’re not going to move out of the thinking zone and into your own world. This is why I love my guitar. For me, it’s perfect.” – John McLaughlin
“Being John’s guitar maker is an honor I fought decades for, and to now be able to give him a signature model is a special moment for me and hopefully the industry,” said Paul Reed Smith. “These guitars were designed to both feel like magic when you pick them up but also disappear
in your hands so you can just focus on playing. John is capable of playing at extraordinary speed and with this instrument, you hear every note.
Finding that balance as a guitar maker and coaxing every bit of sound out of the guitar was the key.”

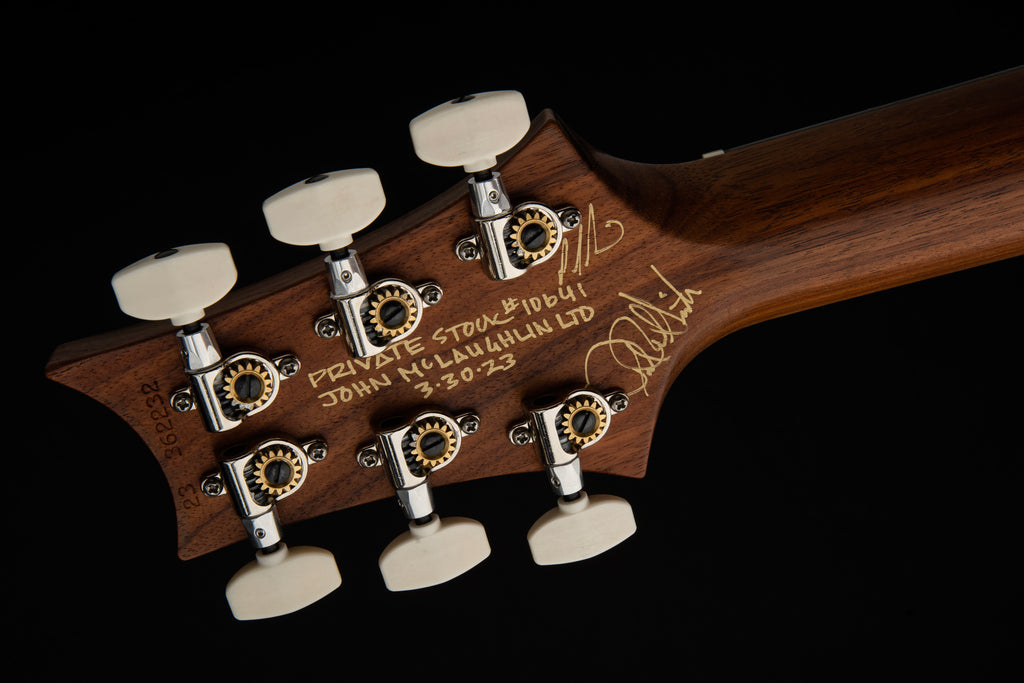

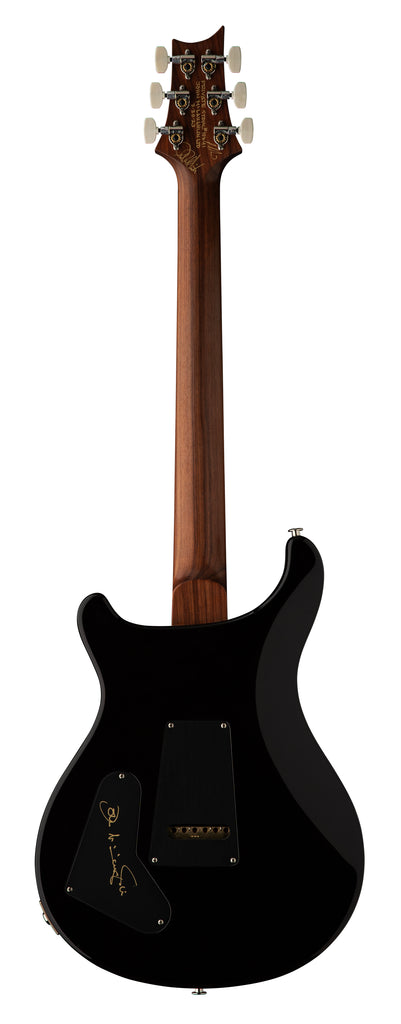

Paul Reed Smith and Paul Miles have signed each Private Stock John McLaughlin model on the back of the headstock. As an added detail, John McLaughlin has autographed the backplate of each instrument.
Body Construction Solidbody
Top Wood Figured Maple
Back Wood African Mahogany
Top Carve Violin
Number of Frets 22
Fret Wire PRS Jumbo
Scale Length 25”
Neck Wood Hormigo
Neck Construction One-Piece
Truss Rod PRS Double-Acting
Neck Shape Pattern
at the 1⁄2 Fret 7/8” [22.22 mm]
at the Nut 1 11/16” [42.85 mm]
at the Body 2 1⁄4” [57.15 mm]
at the 12 1⁄2 61/64” [24.20 mm]
Fretboard Wood African Blackwood
Fretboard Radius 10”

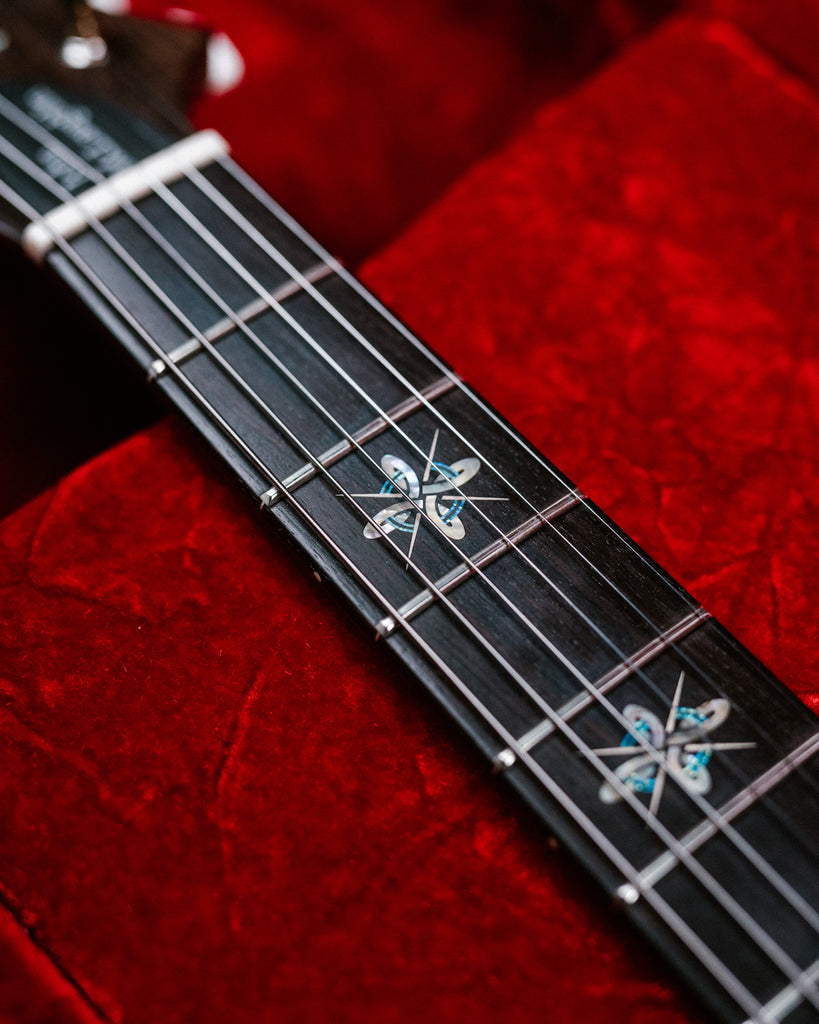

Fretboard Inlay Celtic Knots, Abalone Knot w/ Holly Spikes
and Crushed Opal Oval

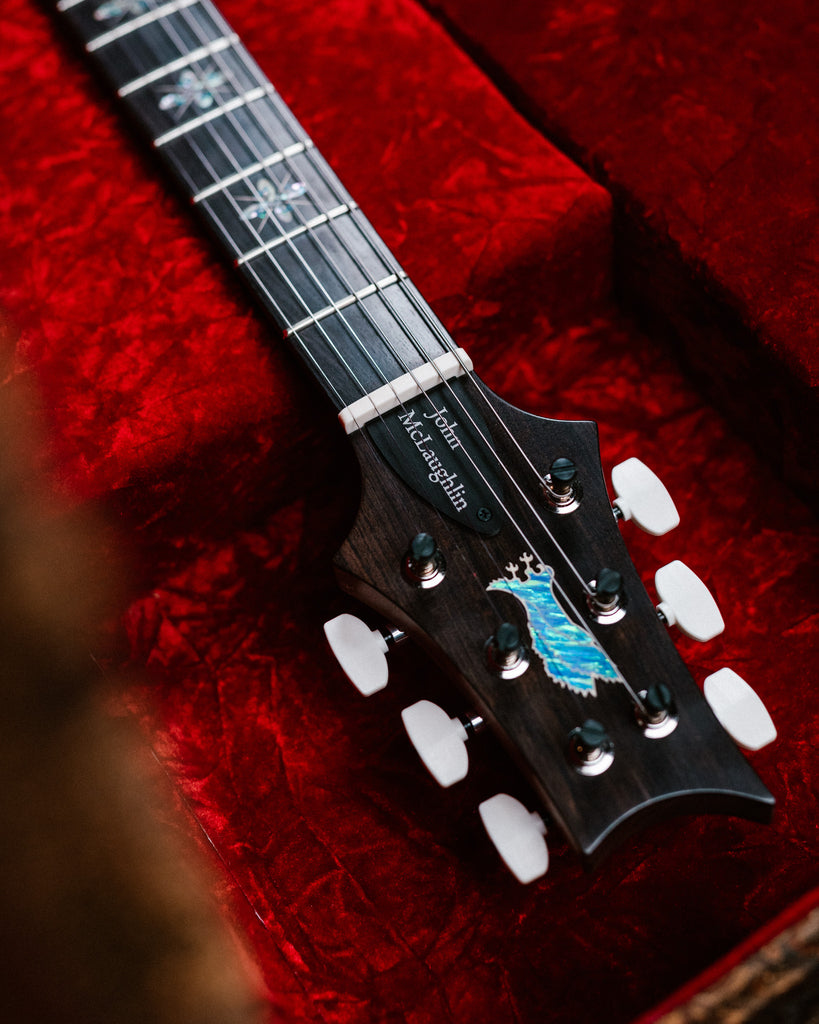

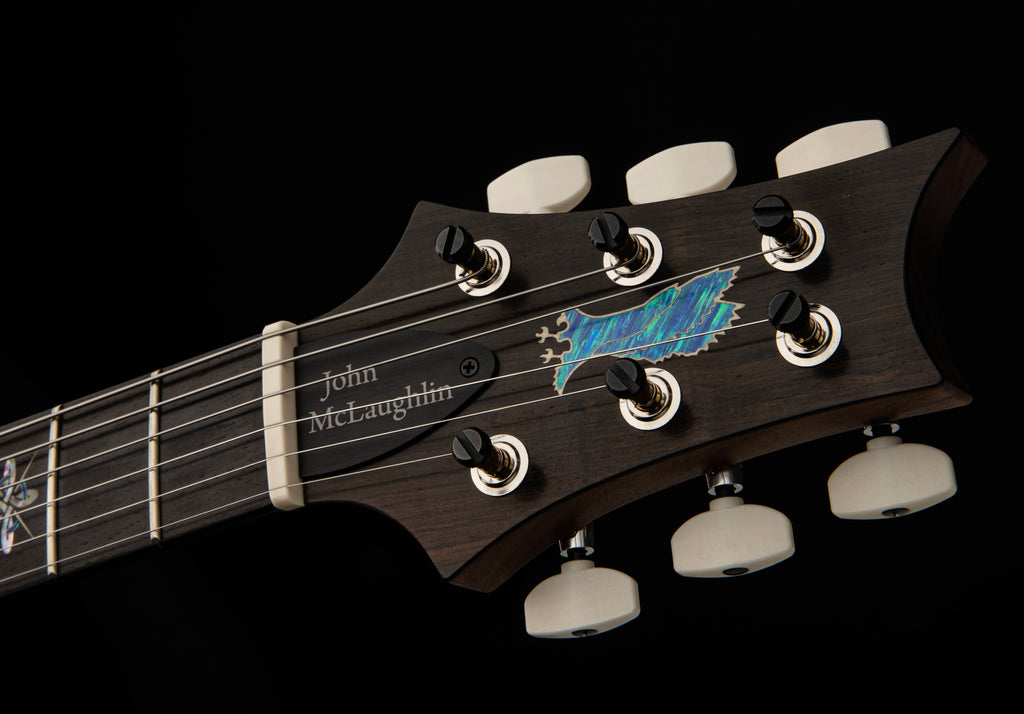

Headstock Logo Private Stock Eagle, Crushed Opal w/ Holly Outlines
NBA Type Set
Finish High-Gloss Nitro
Bridge PRS Patented Tremolo, Gen III
Tuners PRS Phase III Locking
Hardware Type Nickel
Truss Rod Cover “John McLaughlin”

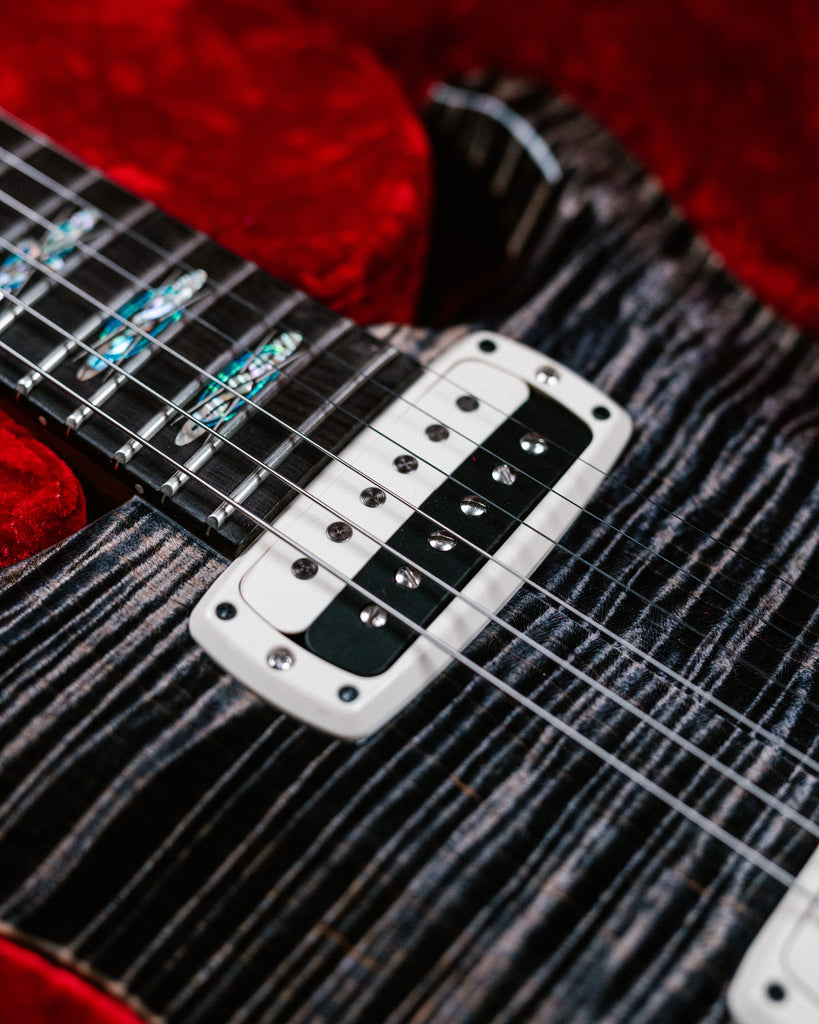

Treble Pickups TCI
Bass Pickups TCI

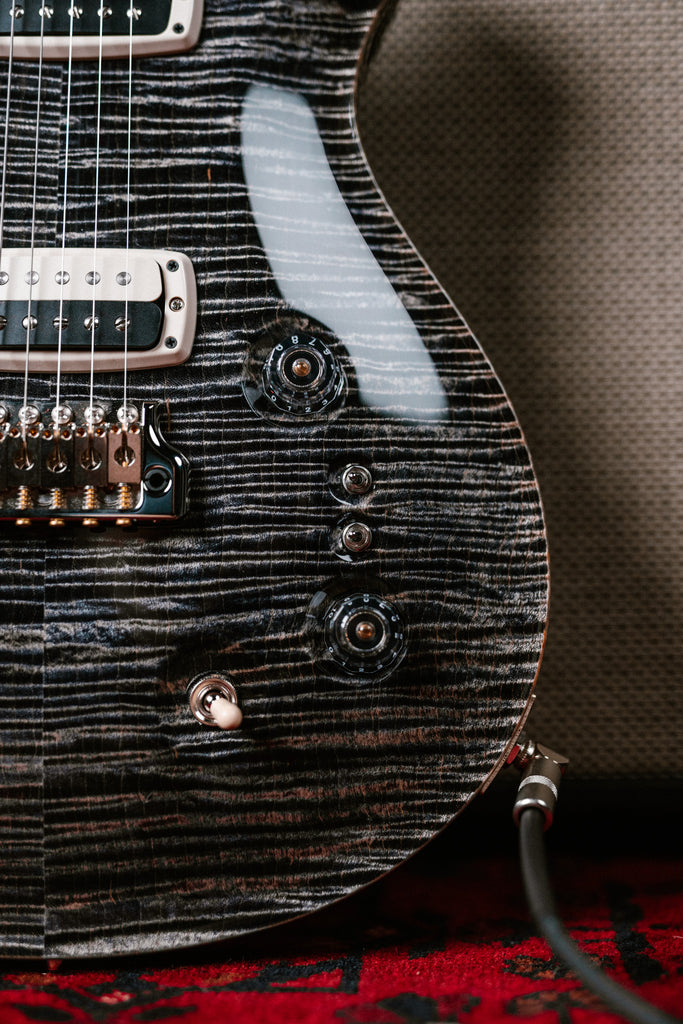

Controls Volume & Tone Controls with 3-Way Toggle Pickup Switch
and Two Mini-Toggle EQ Switches
Tuning Standard (6 String): E-A-D-G-B-E
Case Private Stock Brown Paisley
Charcoal Phoenix with Smoked Black Back
ELECTRONICS EXPLANATION FOR CONTROL DIAGRAM
P1 (down): treble pickup
P2: treble and bass pickups
P3 (up): bass pickup
MINI-TOGGLE EQ SWITCH
Up: High-Pass EQ Mode
Down: Standard Humbucker Mode
